Introduction

NS5324 is a HDMI (High-Definition Multimedia Interface) receiver compatible with HDMI 2.0/HDMI 1.4/DVI 1.0.  NS5324 supports video formats up to 4Kx2K 60Hz/2K144Hz/1080P240Hz.NS5324 contains HDCP1.4/2.2 decryption engine.NS5324 includes a flexible 24-bit video data interface compatible with CEA-861 using separate sync signals or BT1120 using embedded sync. NS5324 support 4 audio output signals configurable as either SPDIF or I2S. NS5324 supports multi-channel Dolby Digital, DTS, AAC and 8-channel PCM formats with up to 192KHz sample rate.NS5324 also supports HDMI ARC feature and two-way pass through of GPIO, UART, IR signaling.

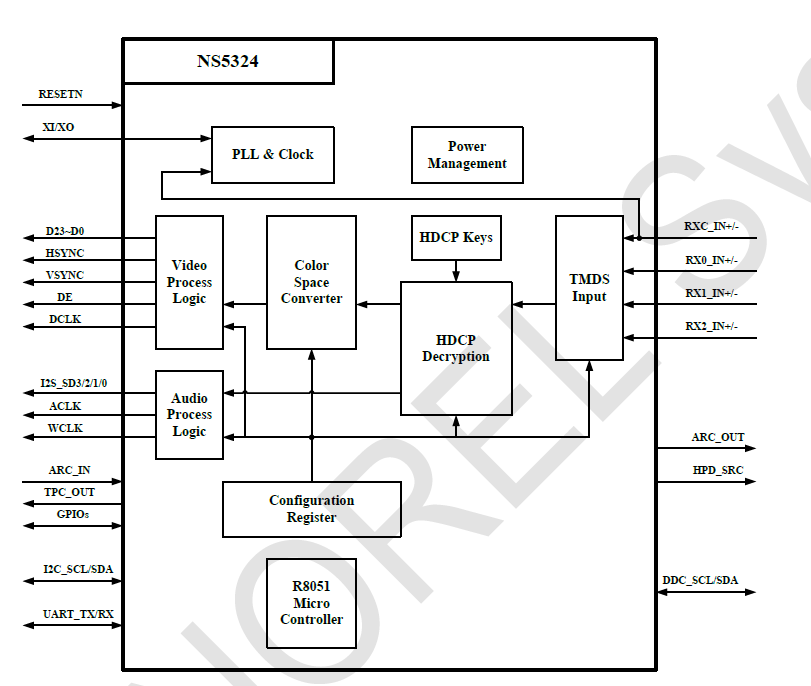

Block Diagram
