NS6010 CSI-2 to 3.2G HSMT Serializer

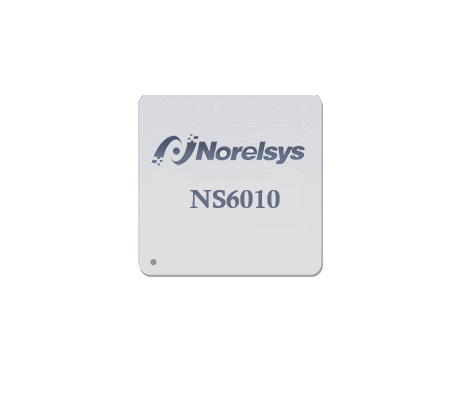

  • 6010.jpg

Introduction

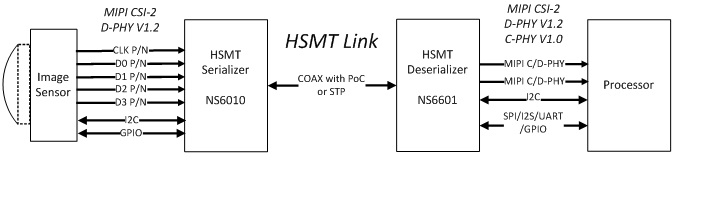

     The NS6010 Serializer chip is compliant to Automotive Wired High-Speed Media Transmission (HSMT) standard. The NS6010 converts MIPI CSI-2 to one HSMT link output for transmission of video and bi-directional control data. HSMT link operates at a fixed data rate of 3.2Gbps or 2.0Gbps in the forward direction, and 100Mbps in the backward direction. The NS6010 supports Power-over-Cable (PoC) operation over 22 meters Coaxial cable or 12 meters Shielded Twisted Pair (STP) cable, with multiple inline connectors. The NS6010 is ISO 26262 ASIL-B and AEC-Q100 Grade 2 certified with automotive temperature range of -40°C to +105°C.

     The NS6010 includes ISO 26262 ASIL-B certified I2C and SPI control ports, flexible GPIO with trigger mode, constant latency mode and oversample mode, tunneled UART, forward and backward audio channels, a built-in ADC, temperature sensor, and an extensive set of diagnostics for functional safety.

Applications

·           High-Definition 5MP Camera Systems

·           Advanced Driver Assistance Systems (ADAS)

·           Front Vision Camera Systems (FVC)

·           Surround View Systems (SVS)

·           Driver Monitor Systems (DMS)

·           Automatic Parking Assist (APA)

Features

·           Multiple data rates for system and power flexibility

      --2.0 or 3.2Gbps forward-link rates

Ÿ--100Mbps backward link rate allows small Power-over-Cable inductor

·           Robust communication in automotive environment

             --RS-FEC for protection of forward video and control-channel data

 --Physical layer retransmission

·           High performance backward receiver

Ÿ  --Backward channel adaptive equalization

Ÿ  --Backward channel eye timing margin monitor for continuous link margin diagnosis

Ÿ  --RS-FEC for protection of backward control-channel data

·           Four-lane MIPI CSI-2 input

Ÿ  --RAW8/10/12/14/16/20/24, RGB888, YUV422 8/10-bit

Ÿ  --16 virtual channels

Ÿ  --80Mbps-2.5Gbps/lane D-PHY V1.2

·           Supports bulk and tunneling modes I2C (master up to 833Kbps, slave up to 1Mbps)

·           Supports 2x I2C, 2x SPI, 9x GPIO, 2x UART, 2x I2S

·           Functional safety

Ÿ--ISO 26262 ASIL-B certified

--CRC protection of control-channel (I2C, SPI)

Ÿ--Video data error correction and retransmission

·           Video watermark insertion and detection

·           Video test pattern generation

·           Advanced diagnostics

Ÿ  --Line fault detection

 --Supply voltage monitor

·           Generates reference clock for image sensor synchronizing to back channel clock

·           Generates frame sync singal to image sensor

·           Programmable spread spectrum for EMI reduction

·           5mm x 5mm QFN package
