Introduction

The NS6139 deserializer chip is compliant to Automotive Wired High-Speed Media Transmission (HSMT) standard. Pairing with a compatible HSMT serializer, the NS6139 is used for transmission of forward video and bidirectional audio and control data for automotive display applications. The NS 6139 receives the HSMT input over a single or dual HSMT links and converts the input to DP/eDP formatted output. Each HSMT link operates at a fix ed data rate up to 12.8Gbps in the forward direction and 100Mbps in the backward direction. The NS6139 supports 15 meters Coaxial cable or 8 meters Shielded Twisted Pair (STP) cable at 12.8Gbps. The NS6139 is AEC-Q100 Grade 2 certified with automotive temperature range of -40°C to +105°C, and meets ISO 10605 and IEC 61000-4-2 ESD requirements.

The NS6139 supports I2C and SPI control ports, flexible GPIO with trigger mode, constant latency mode and oversample mode, tunneled UART, forward and backward audio channels, a built-in ADC, temperature sensor, and an extensive set of diagnostics.

Applications

•   High-resolution Automotive Navigation System

•   Central Information Display (CID)

•   Digital Instrument Clusters

•   Rear Seat Entertainment (RSE)

•   Head Units and HMI Modules

•    Rear View and Side Mirror Displays

Features

•         Dual DisplayPort/Embedded DisplayPort output ports

·           24/30-bit RGB, and 16/20-bit YUV422

·           DP/eDP v1.4 compliant

·           1/2/4-lane main link with up to 5.4Gbps per lane

·           Hot Plug Detect and AUX Channel (1Mbps)

·           Supports 4K@60Hz video resolution

·           Supports video synchronization and splitting

·           HSMT link for system and power flexibility

 ·          Supports two HSMT links

 ·          2.0, 3.2, 4.0, or 6.4Gbps forward-link rates (NRZ)

 ·          8.0 or 12.8Gbps forward-link rates (PAM4)

 ·         100Mbps backward-link rate per link

·           Robust communication in automotive environment

 ·          Forward channel adaptive equalization

 ·          RS-FEC for protection of forward video and bidirectional control data

  ·          Video data error correction and retransmission

 ·          Advanced DSP continuously tracking changes in cable, connector, PCB and other channel characteristics over time and temperature

·           Digital audio with I2S and TDM interface

 ·          Supports forward-direction 7.1 HD audio and up to 192kHz sample rate

 ·          Supports backward-direction 8 channels at 48kHz sample rate or 2 channels at 192kHz sample rate

·           Supports bulk and tunneling modes I2C (master up to 833Kbps, slave up to 1Mbps)

·           Supports SPI (master/slave up to 50Mbps), UART (Tx/Rx), GPIO, and interrupt for touch-screen and other use cases

·           CRC protection of control data over I2C and SPI

·           Supports image enhancement features

·           Video watermark and test pattern generation

·           Logic and memory BIST

·           Supports line fault detection and voltage monitor

·           9mm x 9mm 76-pin QFN package

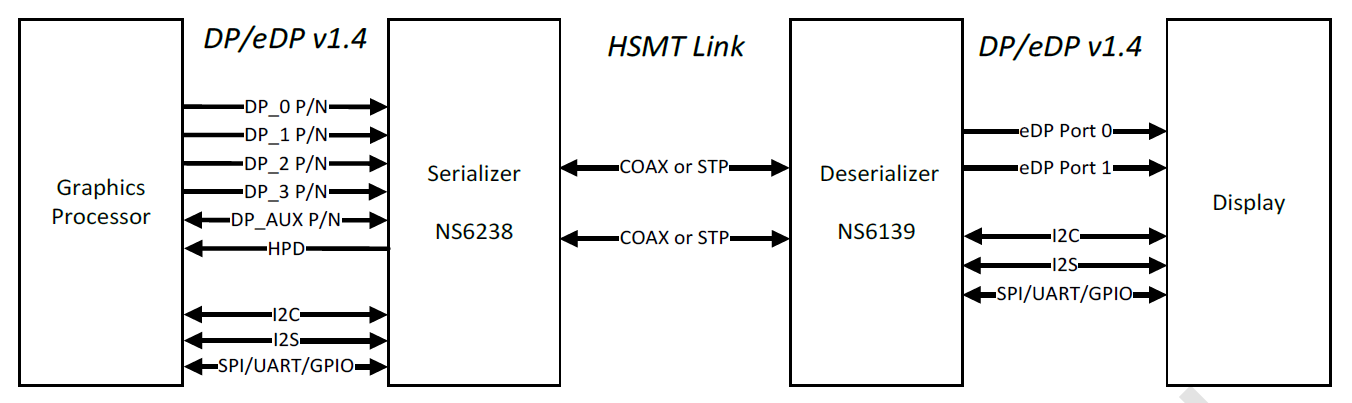

Figure 1. Application Example

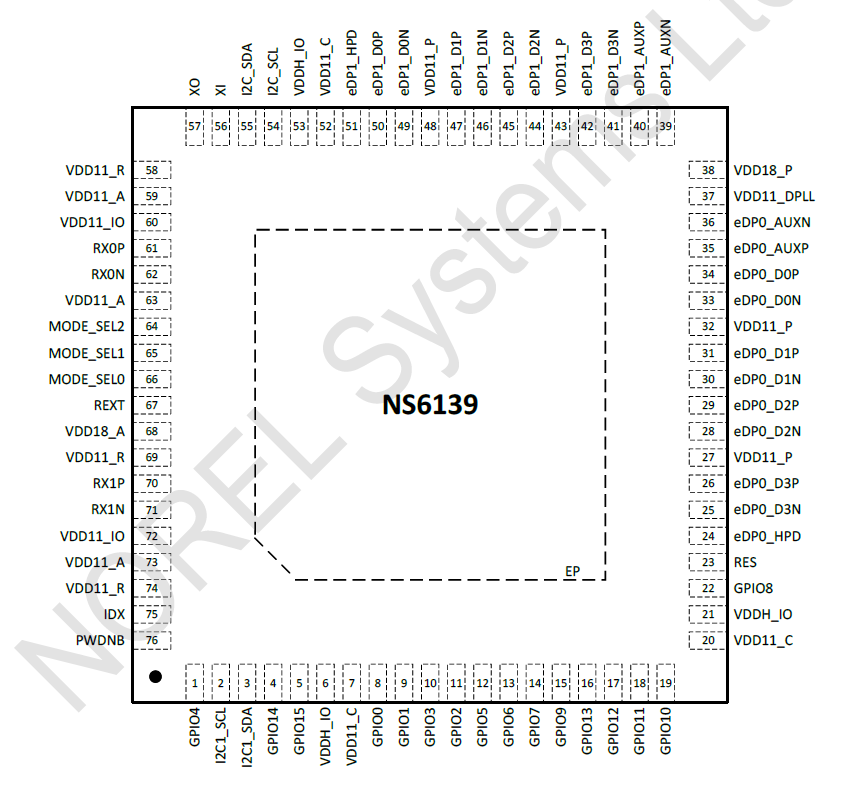

Figure 2. NS6139 Pinout
